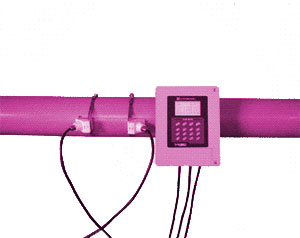

Ultrasonic wall-mounting Clamp-on Flow meter provides abundant capabilities for accurate liquid flow measurement from outside of a pipe.
It utilizes best technology in ultrasonic transmission/receiving, digital signal processing and transit-time measurement. The signal quality tracking and self-adapting technologies allow the system to optimally adapt to different pipe materials automatically.
The Flowmeter is carefully designed with their user-interfaces, self-explaning and their operation simple and easy to use . The unique clamp-on fixture design makes the installation very simple , with no skill required by user .
Due to the non-invasive nature of clamp-on transducers, there is no pressure drop, no moving parts, no leaks, no risk of contamination or corrosion.
Salient Features
- Ideal for both clean and opaque liquid flow measurement
- High accuracy 1.0% reading
- Bi-directional measurement. Totalizer display for net, positive and negative flow
- Easy and economical installation, No pipe cutting
- Wide measurement range 0 ~ 12m/s
- Wide pipe size range (DN 12 ~ 4570mm)
- Cost effective and Versatile
- Suitable for all commonly used pipe materials
- Non invasive, No moving parts, No pressure drop, No maintenance
Applications
- Water and waste water management
- Chemical, Petrochemical and Process Industries
- Fertilizer Industries
- Mining Industries
- Pharmaceutical Industries
- Sugar, Beverage Industries
- Paper and Pulp Industries
- Dredging Industries
- Food and Drug Industries
Order Selection Guide
| Transducer |
: |
3 Types Small, Medium and Large
(Size ranging from 12 mm to 4570 mm)
|
| Flow Transmitter |
: |
16 X 4 LCD Display
|
| Output Range |
: |
4 – 20 mA DC, Pulse, RS232, RS485 |
| Auxiliary Supply |
: |
110, 240 V AC ± 20%, 50 Hz, 24 V DC
|
|
|
