ACRYLIC PLASTIC BODY ROTAMETER |
|
| |
|
|
| |
|
|
| |
|
|
| |
We are amongst the leading flowmeter manufacturer in Mumbai, India . Recognized for our high accuracy in high flow water & gas rotameters Our manufacturing capability backed by our accuracy of flowmeter resulting in to list of ever increasing satisfied customers . “Telelin” make high accuracy, clear acrylic plastic body rotameter uses tapered tube drilled directly in acrylic plastic body itself, acrylic plastic is highly stabled, chemical resistant and gives glass like clearness which enables clear visualization of flow. In Acrylic Body rotameter, Flow range is calibrated, engraved and coloured with black on body itself for long lasting durability. Acrylic body rotameters are generally used for Air, Water and Gases.

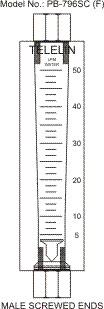

Telelin make Acrylic body flowmeter (rotameter) with Screwed top & bottom connection as per specifications below
SPECIFICATIONS |
OUR MODEL NO :PB-796 SC |
Range |
As per your Process |
Scale |
In your desired flow Units |
Connection |
Threaded Male/ Female as required |
Connection orientation |
Bottom & Top |
Flowmeter body |
Acrylic plastic body as clear as glass |
Scale |
Calibrated scale Engraved on Acrylic body itself |
Metering Tube |
Drilled and reamed in Acrylic it self |
Mounting |
Lugs if required can be provided |
MOC of wetted parts |
304 S.S standard / 316 S.S / M.S or as per requirement |
Packing |
Neoprene / Silicon / Teflon |
Accuracy |
+/-2% OF F.R |
|
|
| |
|
|
| |

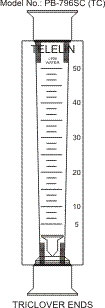

Telelin make Acrylic body flowmeter ( rotameter) with Tri-clover top & bottom connections are widely demanded in dairy industry for continuous monitoring of flow . |
|
| |
|
|
| |
|
|
| |
|
|
| |
SPECIFICATIONS |
OUR MODEL NO :PB-796 TC |
Range |
As per your Process |
Scale |
In your desired flow Units |
Connection |
Triclover fittings |
Conenction Orientation |
Bottom & Top |
Flowmeter body |
Acrylic plastic body as clear as glass |
Scale |
Calibrated scale Engraved on Acrylic body itself |
Metering Tube |
Drilled and reamed in Acrylic it self |
Mounting |
Lugs if required can be provided |
MOC of wetted parts |
304 S.S standard / 316 S.S / M.S or as per requirement |
Packing |
Neoprene / Silicon / Teflon |
Temp Rating |
Upto 45’C max |
Accuracy |
+/-2% OF F.R |
|
|
| |
|
|
| |
Telelin make Acrylic body flowmeter ( rotameter) with flanged ends connections top & bottom connection as per specifications below |
|
| |
|
|
| |
|
|
| |
|
|
| |
SPECIFICATIONS |
OUR MODEL NO :PB-796 FL |
Range |
As per your Process |
Scale |
In your desired flow Units |
Connection |
Flanged |
Connection orientation |
Bottom & Top |
Flowmeter body |
Acrylic plastic body as clear as glass |
Scale |
Calibrated scale Engraved on Acrylic body itself |
Metering Tube |
Drilled and reamed in Acrylic it self |
Mounting |
Lugs if required can be provided |
MOC of wetted parts |
304 S.S standard / 316 S.S / M.S or as per requirement |
Packing |
Neoprene / Silicon / Teflon |
Accuracy |
+/-2% OF F.R |
|
|
| |
|
|
| |
Telelin make Acrylic body flowmeter ( rotameter) with flanged ends connections top & bottom and flow control valve at entry point for better control of flow is provided . |
|
| |
|
|
| |
|
|
| |
|
|
| |
SPECIFICATIONS |
OUR MODEL NO :PB-796 FL + FCV |
Range |
As per your Process |
Scale |
In your desired flow Units |
Connection |
Flanged |
Connection orientation |
Bottom & Top |
Flowmeter body |
Acrylic plastic body as clear as glass |
Flow Control Valve |
Fine tune flow control valve will be provided |
Scale |
Calibrated scale Engraved on Acrylic body itself |
Metering Tube |
Drilled and reamed in Acrylic it self |
Mounting |
With help of flanges |
MOC of wetted parts |
304 S.S standard / 316 S.S / M.S or as per requirement |
Packing |
Neoprene / Silicon / Teflon |
Accuracy |
+/-2% OF F.R |
|
|
| |
|
|
| |
|
|
